| 전압: | 220V / 380V /460V | 힘: | 15 kW |
|---|---|---|---|
| 치수: | 1800*1200*1750mm | 용량: | 5000-7000L/H |
| 무게: | 1600kg | 속도: | 4000 rpm |
| 재료: | 식품규격 스테인레스 강 | 제어: | PLC |
| 유형: | 디스크 스택 | 설계: | 원뿔형 디스크 그릇 |
| 입구 압력: | 0.05 MPa | 출구 압력: | 0.1-0.4 MPA |
| 모터 파워: | 15 kW | 개략 차원: | 1800x1200x1750mm |
| 핵심 구성 요소: | PLC, 베어링, 모터, 기어 | ||
| 강조하다: | Low Noise Level Beer Disk Centrifuge,5000-7000 L/H Capacity Industrial Separator,Food Standard Stainless Steel Horizontal Decanter Centrifuge |
||

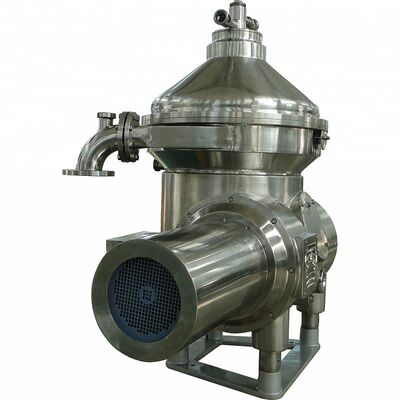

Juneng Juice Separator features a specially designed centripetal pump and inlet/outlet port configuration that creates a gentle separation environment. This ensures active ingredients in materials remain intact while preserving nutritional value, freshness, and original flavor.
The Juneng Juice Separator is suitable for dairy clarifying, milk and cream separation, syrup processing, vegetable juice extraction, tea drinks, coffee, beer, and various other liquid separation applications.
| Main Operating Parameters | Unit | Value |
|---|---|---|
| Treatment Capacity | L/H | 2000-5000 |
| Inlet Pressure | Mpa | 0.05 |
| Outlet Pressure | Mpa | 0.1-0.4 |
| Motor Power | Kw | 15 |
| Equipment Weight | Kg | 1600 |
| Outline Dimension | mm | 1800x1200x1750 |
Name: Disc
Brand: Juneng
Origin: China
Domestic famous engines
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.
Name: Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component responsible for material separation and serves as the heart of the separator system.
Name: Equipment Base
Brand: Juneng
Origin: China
The underframe provides primary support for the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
| Parameter | Value |
|---|---|
| Size | 123 (L) * 123 (W) * 219 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box (Size: L*W*H). If exporting to European countries, the wooden box will be fumigated. If container space is limited, we use PE film for packing or accommodate special customer requests. |
