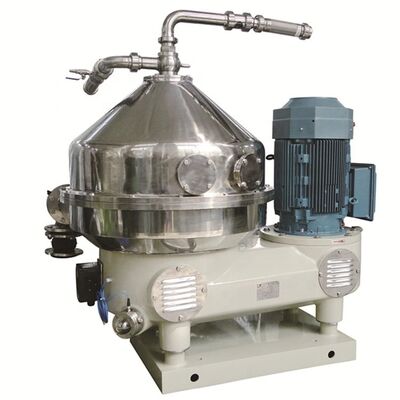

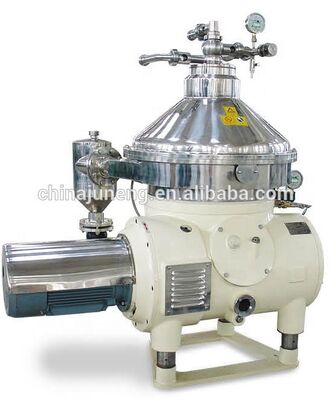

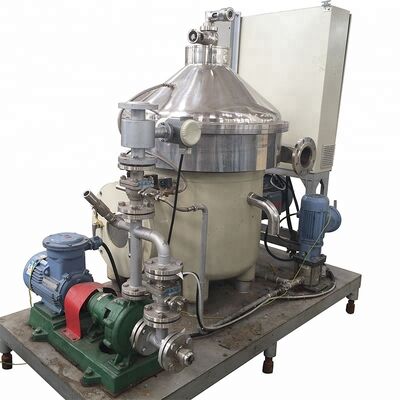

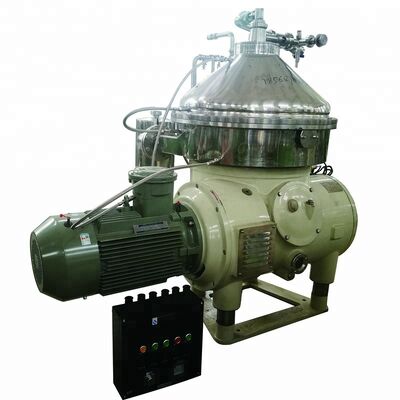

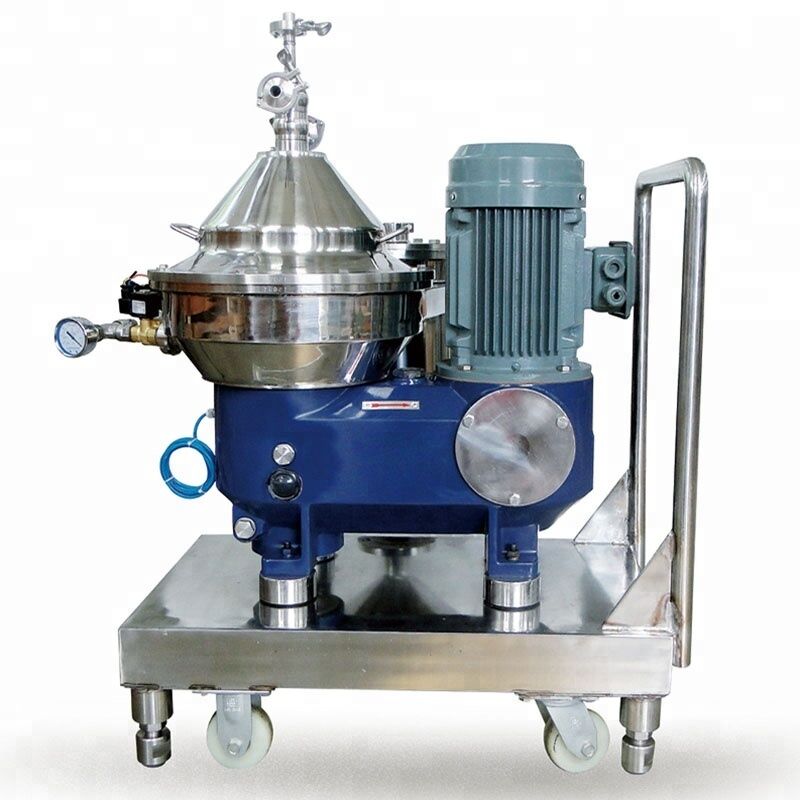

Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator

Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator

큰 이미지 :  Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator

제품 상세 정보:
원래 장소: 중국 장쑤성
브랜드 이름: juneng
결제 및 배송 조건:
최소 주문 수량: 1
가격: $28,300-28,500
접촉

Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator

설명
재료: 304/316L 스테인레스 스틸 모터 파워: 7.5kw-22kw
용량: 500-10000LPH 방전 유형: PLC 제어 자동 방전
베어링: SKF 베어링 원심형: 고속 분리
속도: 5000-12000 rpm 입구 압력: 0.05MPa
출구 압력: 0.1-0.4MPa 무게: 1000kg-3000kg
차원: 1530*1150*1500mm(모델에 따라 다름) 기능: 삼상 분리기
집회: 정밀조립 제어 시스템: PLC 시스템 자동 제어
분리 계수: 높은
강조하다:

automatic milk separator machine

,

centrifugal milk cream separator

,

disc oil separator with warranty

Automatic Milk Separator Machine
Advanced centrifugal milk cream separator designed for modern dairy processing with precision separation technology.
Separator Application
As consumer demand for high-quality dairy products increases, advanced processing equipment becomes essential. Juneng centrifugal separators feature specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment, preserving active ingredients while maintaining nutritional value, freshness, and original flavor.
The milk cream separator is primarily used in milk processing to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. It also enables milk standardization based on fat content requirements.
Juneng separators can remove extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
DHN Model - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle for Dairy Skimming
The disc separator is specifically designed for two-phase and three-phase separation. Two-phase separation involves separating suspended solids from liquids or separating two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 0
Working Principle for Dairy Clarification
Clarification involves two-phase separation. Materials are fed into the machine's bowl interior where strong centrifugal force removes impurities from raw materials, resulting in clean milk.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 1
Separator Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for longer service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High processing efficiency
  • Lower energy consumption
  • Gentle feeding and discharging through optimized inlet/outlet design
Separator Applications
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 2 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 3 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 4
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion from processed materials while meeting strict food hygiene requirements.
The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 5
Vertical and Horizontal Shafts
All components are constructed from stainless steel with high-quality machining and precision assembly for reliable high-speed operation.
Material Super stainless steel
Function High-speed operation
Assembly Precision assembly
Speed 5000-12000 RPM
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 6 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 7
PLC Control System
The separator features an automatic control cabinet with industrial computer and overload protection. This highly automated system adapts to process changes, is easily adjustable, and significantly reduces operator workload.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 8
Quality Assurance
Our company maintains a first-class laboratory for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. Advanced instrumentation and rigorous quality control ensure every product component is stable and reliable.
Packaging & Delivery
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 9
Size 1800(L) × 1800(W) × 1800(H) - varies by model
Weight 1000kg - 3000kg
Packaging Details Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special customer requirements.
International Collaboration
Juneng focuses on international technical and commercial collaboration, learning advanced management systems and expertise from partners in the United States, Canada, Germany, Russia, and Southeast Asia. Our vision is to become an industry leader in China and worldwide.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 10 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 11
Production Facilities
As China's largest production facility for separators, centrifuges, and filters, we maintain extensive manufacturing capabilities.
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 12 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 13
Customer Service
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 14
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Certifications & Honors
Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 15 Automatic Milk Separator Machine of Milk Centrifugal Milk Cream Separator 16
Frequently Asked Questions
How can we visit your factory?
International visitors: Fly to Shanghai airport - we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train - we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies. Advanced processing machines ensure component precision, licensed workers perform operations, parts undergo multiple processing stages, and transmission/electrical components use international brands. Comprehensive testing and inspection occur throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
12 months after commissioning.
How can I trust your company as a new customer?
We have been on Alibaba.com for 10+ years as golden suppliers with authority certificates including CE, ISO9001, and Alibaba onsite check certification. Our Trade Assurance Limit is US$42,000 and growing.
What are your shipment terms and delivery time?
Delivery time depends on order quantity - typically 20 days, 30 days for customized machines.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
