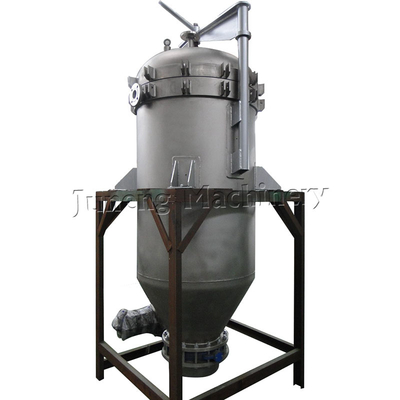

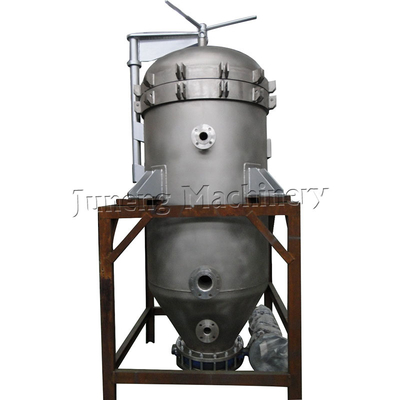

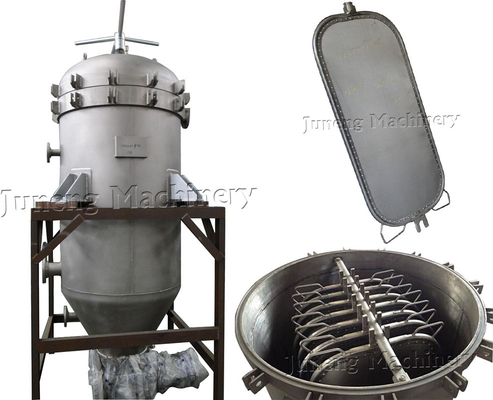

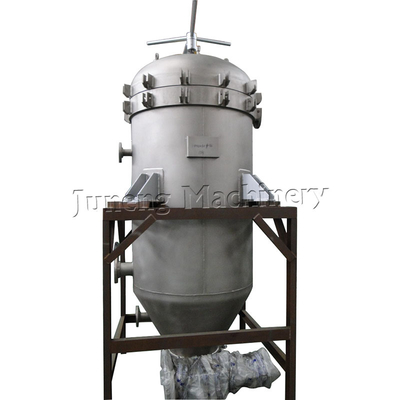

| 구조: | 수직 엽상 여과기 | 재료: | 스테인리스 스틸 304 |
|---|---|---|---|
| 용량: | 오일의 경우 4-6t/h | 여과 영역: | 20m2 |
| 설계 온도: | 100-150 ℃ | 설계 압력: | 0.6MPA |
| 필터 케이크 크기: | 400L | 작업 압력: | 0.1-0.4mpa |
| 작업 온도: | ≤150 ℃ | 기계 크기: | 1680L |
| 잎 소재: | 316L | 잎 두께: | 1.8 밀리미터 |
| 밸브 유형: | DN 400 나비 밸브 | 밸브 시트 재료: | NH-S |
| 공압 액추에이터 압력: | 5.5 바 | ||
| 강조하다: | Stainless Steel 304 pressure leaf filter,20m2 filtration area pressure filter,4-6T/H industrial pressure leaf filter |
||
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Name | Pressure leaf filter |
| Structure | Vertical leaf Filter |
| Material | Stainless Steel 304 |
| Capacity | 4-6T/H for oil |
| Filtration area | 20m² |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
| Model | Filtration area (m²) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
| NYB-25 | 25 | 500 | 5-7 | 0.1-0.4 | ≤150 | 1900 |
| NYB-30 | 30 | 600 | 6-8 | 0.1-0.4 | ≤150 | 2300 |
| NYB-36 | 36 | 720 | 7-9 | 0.1-0.4 | ≤150 | 2650 |
| NYB-40 | 40 | 800 | 8-11 | 0.1-0.4 | ≤150 | 2900 |
| NYB-45 | 45 | 900 | 9-13 | 0.1-0.4 | ≤150 | 3200 |
| NYB-52 | 52 | 1040 | 10-15 | 0.1-0.4 | ≤150 | 3800 |
| NYB-60 | 60 | 1200 | 11-17 | 0.1-0.4 | ≤150 | 4500 |
| NYB-70 | 70 | 1400 | 12-19 | 0.1-0.4 | ≤150 | 5800 |
| NYB-80 | 80 | 1600 | 13-21 | 0.1-0.4 | ≤150 | 7200 |

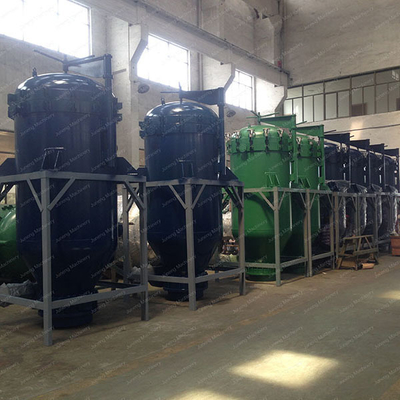

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filters, Separators, Decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we offer convenient transportation access.
Our company maintains strict quality control and thoughtful customer service, with experienced staff always available to discuss requirements and ensure full customer satisfaction. We hold CE certificates, ASME U certificate and ISO 9001 certification, with products exported worldwide including USA, Germany, Korea, Japan, and many other countries.
