| 전압: | 사용자 정의 | 힘: | 1500W |
|---|---|---|---|
| 무게: | 1000kg | 치수: | 1610*1250*2500 mm |
| 용량: | 2-4T/h | 여과 영역: | 12m2 |
| 재료: | 탄소강, 스테인레스 스틸 | 설계 온도: | 100-150 ℃ |
| 설계 압력: | 0.6MPA | 입구 크기: | DN50 |
| 콘센트 크기: | DN50 | 필터 케이크 크기: | 240L |
| 작업 압력: | 0.1-0.4 MPA | 작업 온도: | ≤ 150 °C |
| 기계 크기: | 1000L | ||
| 강조하다: | semi-automatic pressure leaf filter,oil bleaching filter 12m2,pressure leaf filter 2-4T/H |
||
| Condition | New |
| Automatic Grade | Semi-automatic |
| Voltage | Customized |
| Power | 1500W |
| Weight | 1000 kg |
| Dimension (L×W×H) | 1610×1250×2500 mm |
| Warranty | 1 Year |
| Function | Oil Filter |

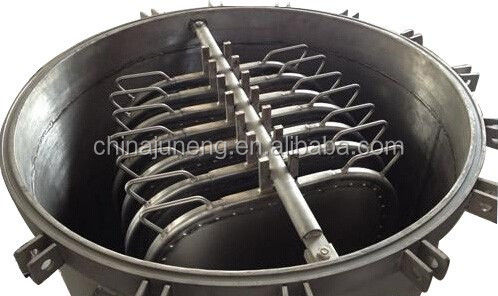

| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration Area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet Size | DN50 |
| Outlet Size | DN50 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
| Model | Filtration Area (㎡) | Filter Cake Volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work Temperature (℃) | Machine Volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.5 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.5 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.5 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.5 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.5 | ≤150 | 1300 |
| Size | 123 (L) × 456 (W) × 789 (D) cm |
| Weight | 1.2 Tons |
| Packaging Details | Standard wooden box packaging. European shipments include fumigated wooden boxes. Alternative packaging available for tight containers or special requests. |
