| 전압: | 220V | 힘: | 7500w |
|---|---|---|---|
| 재료: | 스테인레스 스틸 | 핵심 구성 요소: | PLC, 모터, 압력 용기 |
| 용량: | 일 당 20-300 톤 | 방전 유형: | 자동 배출 |
| 작업 유형: | 자동 연속 운전 | 베어링 종류: | SKF 베어링 |
| 무게: | 2000kg | 드럼 소재: | 듀플렉스 스테인리스강 |
| 드럼 속도: | 5000-13000rpm | plc 브랜드: | 지멘스 |
| 터치 스크린 브랜드: | 샤이더 | 치료 능력: | 10-60 TPD(DHZ360), 60-160 TPD(DHZ470), 160-250 TPD(DHZ500), 250-350 TPD(DHZ550E) |
| 포장 무게: | 1000kg-3000kg | ||
| 강조하다: | SS304 self-cleaning oil separator,solid liquid separator with warranty,disc oil separator stainless steel |
||

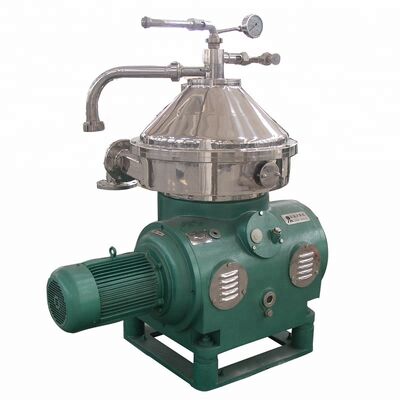

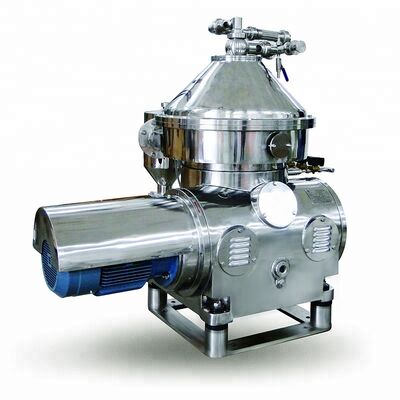

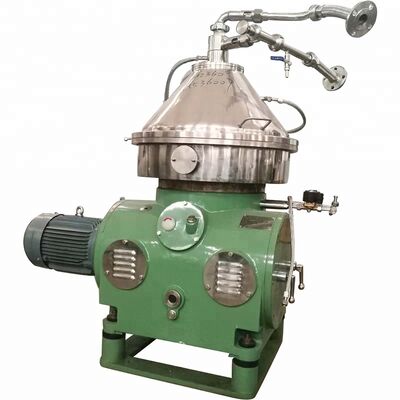

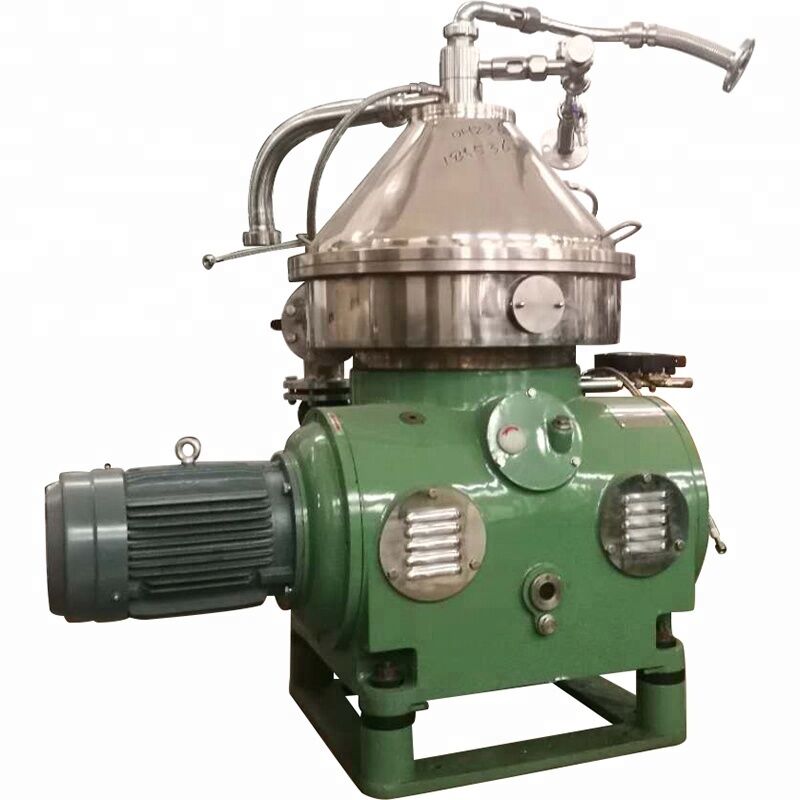

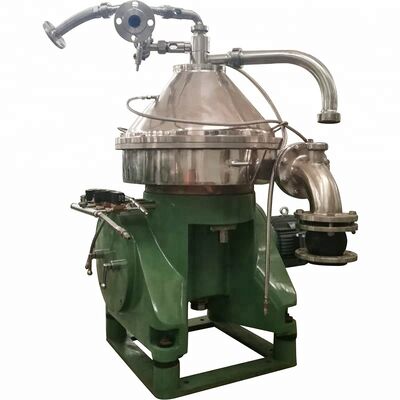

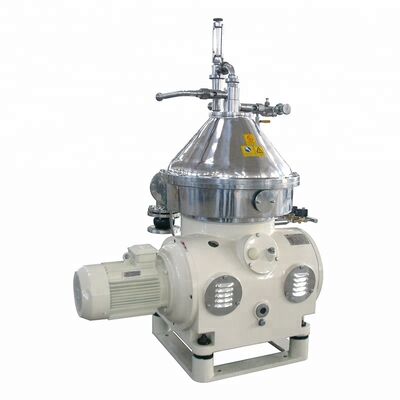

The OIL centrifuge disc separator is a high-efficiency gravity separation equipment featuring compact design, smooth operation, sealed material handling, and reliable performance. This fully automated system is widely used for liquid-liquid separation, solid-solid separation, clarifying, and concentration processes.
Vegetable Oil Processing: Degumming, de-soaping, and water washing in vegetable oil refineries for oils including Colza, Cottonseed, Corn, Palm, Soybean, Peanut, Rice, Sesame, and Sunflower oils.
Other Industries: Refining of animal oils, mineral oils, and liquid-liquid/solid separation in light industry, chemical, pharmaceutical, and food processing applications.
| Treatment Capacity | Model |
|---|---|
| 10-60 TPD | DHZ360 |
| 60-160 TPD | DHZ470 |
| 160-250 TPD | DHZ500 |
| 250-350 TPD | DHZ550E |
The disc separator is specifically designed for 2-phase and 3-phase separation processes. Two-phase separation removes suspended solids from liquids or separates two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Material: Duplex Stainless Steel
Function: Moving component of separator
Speed: 5000-13000 rpm
Testing: Material qualification and dynamic balance testing
Includes vertical shaft, corross shaft, and centripetal pump
Material: Stainless Steel
PLC Brand: Siemens
Touch Screen Brand: Schneider
Custom brand specifications available
Language: Customer specified
| Parameter | Details |
|---|---|
| Size | Varies by model |
| Weight | 1000kg-3000kg |
| Packaging Details | Standard wooden box packaging. Fumigated for European exports. PE film or custom packaging available. |
| Transport | Domestic: Road transport | Overseas: Sea or rail |
Q: How can we visit your factory?
A: International visitors can fly to Shanghai airport for pickup. Domestic visitors can travel to Wuxi station for collection.
Q: How do you ensure product quality?
A: As a state-owned enterprise with 30+ years experience, we implement strict operational policies, advanced processing machinery, certified workers, and comprehensive testing throughout production.
Q: What payment methods do you accept?
A: We primarily accept T/T and L/C at sight, with other methods available.
Q: What is the warranty period?
A: 12 months warranty after commissioning.
Q: What are your shipment terms and delivery time?
A: Standard delivery is 20 days, with 30 days for customized machines, depending on order quantity.
